YK/YA-type Circular Vibrating Screen with Wear-resistant Sieve
YK-type Circular Vibrating Screen
Introduction:
YK series circular vibrating screen is a sieving machine developed by our factory according to the needs of customers and the advanced technology in China. Its vibration parameters are similar to the screen machine produced by KHD company in Germany. The movement of the sieve box is circular.
Feature & Working Principle:
1. This vibro screen is mainly composed of screen box, screen mesh, vibrator and damping spring. The vibrator is installed on the side plate of the screen box, and driven by the motor through the coupling to rotate, generating centrifugal inertia force, forcing the screen box to vibration.
2. According to material varieties and users' requirements, high manganese steel textile screen, punching screen plate and rubber screen plate can be used.
3. There are two kinds of screen plates: single and double layers. All kinds of screen plates can meet the requirements of high screening efficiency, long life and no blocking of holes.
4. The screen machine is mounted in a pedestal type. The angle adjustment of shaker screen can be achieved by changing the height of the spring support position.
5. The motor can be installed on the left side of the screen frame, or on the right side of the screen frame. If there is no special requirement, the manufacturer can supply the motor according to the right side of the material movement direction.
Applications:
If u wanna see delivery site, please click: https://www.hnjinte.com/news/circular-vibrating-screens-have-been-shipped
Technical Parameter:
|
Model |
Screen Surface Area (㎡) |
Feeding Granularity (mm) |
Processing Capacity (t/h) |
Sieve Pore Size (mm) |
Vibration Frequency (Hz) |
Motor Model |
Motor Power (Kw) |
Single Point Dynamic Load (N) |
|
2.88 |
≤200 |
70-250 |
10-40 |
16 |
Y132M1-6 |
4.0 |
900 |
|
|
2YK1224 |
2*2.88 |
≤200 |
70-250 |
10-40 |
16 |
Y132M2-6 |
5.5 |
1230 |
|
YK1530 |
4.5 |
≤400 |
200-650 |
10-100 |
16 |
Y160M-6 |
7.5 |
1350 |
|
2YK1530 |
2*4.5 |
≤400 |
200-650 |
10-40 |
16 |
Y160M-6 |
7.5 |
1750 |
|
YK1536 |
5.4 |
≤400 |
250-750 |
10-40 |
16 |
Y160L-6 |
11*2 |
1750 |
|
2YK1536 |
2*5.4 |
≤400 |
250-750 |
10-40 |
16 |
Y160L-6 |
11*2 |
1950 |
|
YK1836 |
6.48 |
≤400 |
250-750 |
10-40 |
16 |
Y160L-6 |
15 |
1850 |
|
2YK1836 |
2*6.48 |
≤400 |
250-750 |
10-40 |
16 |
Y180L-6 |
18.5 |
2200 |
|
YK1848 |
8.64 |
≤400 |
250-850 |
10-40 |
12.25 |
Y200L1-6 |
22 |
2120 |
|
2YK1848 |
2*8.64 |
≤400 |
250-850 |
10-40 |
12.25 |
Y225M-8 |
22 |
2540 |
|
YK2148 |
10.08 |
≤400 |
250-1000 |
10-40 |
12.25 |
Y225M-8 |
22 |
1310 |
|
2YK2148 |
2*10.08 |
≤400 |
250-1000 |
10-40 |
12.25 |
Y225M-8 |
30 |
1550 |
|
YK2160 |
12.6 |
≤400 |
250-1200 |
10-40 |
12.25 |
Y250M-8 |
30 |
1510 |
|
2YK2160 |
2*12.6 |
≤400 |
250-1200 |
10-40 |
12.25 |
Y250M-8 |
30 |
1820 |
|
YK2665 |
15 |
≤400 |
250-1400 |
10-40 |
12.25 |
Y280S-8 |
37 |
1750 |
|
2YK2665 |
2*15 |
≤400 |
250-1400 |
10-40 |
12.25 |
Y280S-8 |
37 |
2100 |

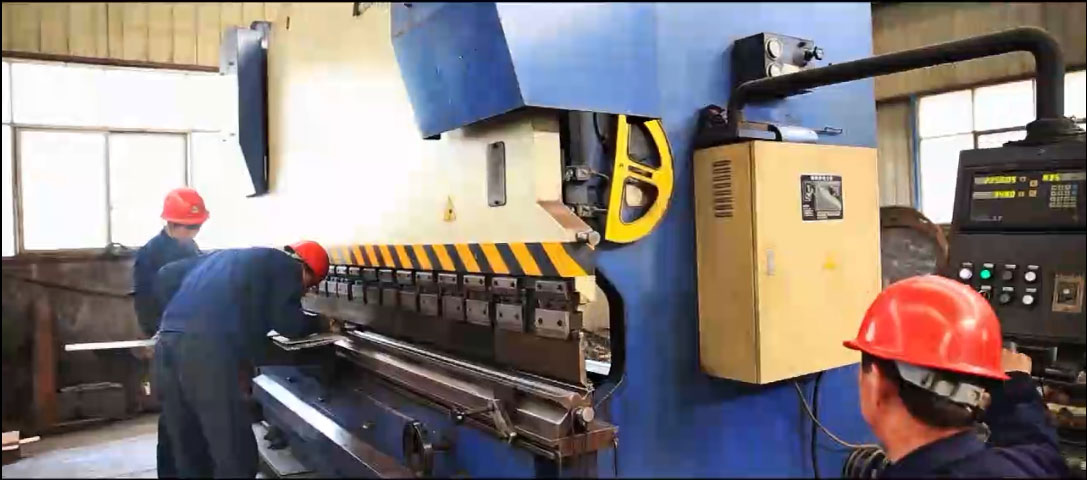

Factory & Team
Delivery
√ Since our factory belongs to the machinery industry, the equipment needs to be matched with the process.
The size, model and specifications of the product can be customized according to customer needs.
√ All products in this store are for virtual quotes and are for reference only.
The actual quotation is subject to the technical parameters and special requirements given by the customer.
√ Provide product drawing, manufacturing process and other technical services.
1. Can you offer the customized solution to my case?
Our company has a professional R & D team, and be able to customize mechanical products for you according to your needs. At the same time, our company guarantees that every product produced for you is in compliance with the national and industry standard, and no quality problems.
Please send us inquiry if u have any concerns.
2. Is the machine produced safe and reliable?
Absolutely yes. We are a company specializing in the production of machinery. We have advanced technology, excellent R & D team, superb process design and other advantages. Please believe that we can fully meet your expectations. The machines produced are in line with national and industry quality standards. Please feel free to use.
3. What is the price of the product?
The price is determined by the specifications of the product, the material, and the special requirements of the customer.
Quotation method: EXW, FOB, CIF, ect.
Payment method: T/T, L/C, ect.
Our company is committed to selling high quality products that meet your requirements at an acceptable price.
4. Why do I trade with your company?
1. Reasonable price and exquisite workmanship.
2. Professional customization, good reputation.
3. Carefree after-sales service.
4. Provide product drawing, manufacturing process and other technical services.
5. Case experience of working with many outstanding domestic and foreign companies over the years.
Regardless of whether a deal is reached or not, we sincerely welcome your letter. Learn from each other and make progress together. Maybe we can be friends of the other side.
5. Are you engineers available for overseas installation and training matters?
At the client’s request, Jinte can provide installation Technicians to supervise and assist in the assembly and commissioning of the equipment. And all the costs during the mission needs to be covered from you.
